SBS is ideal for beam cutting!

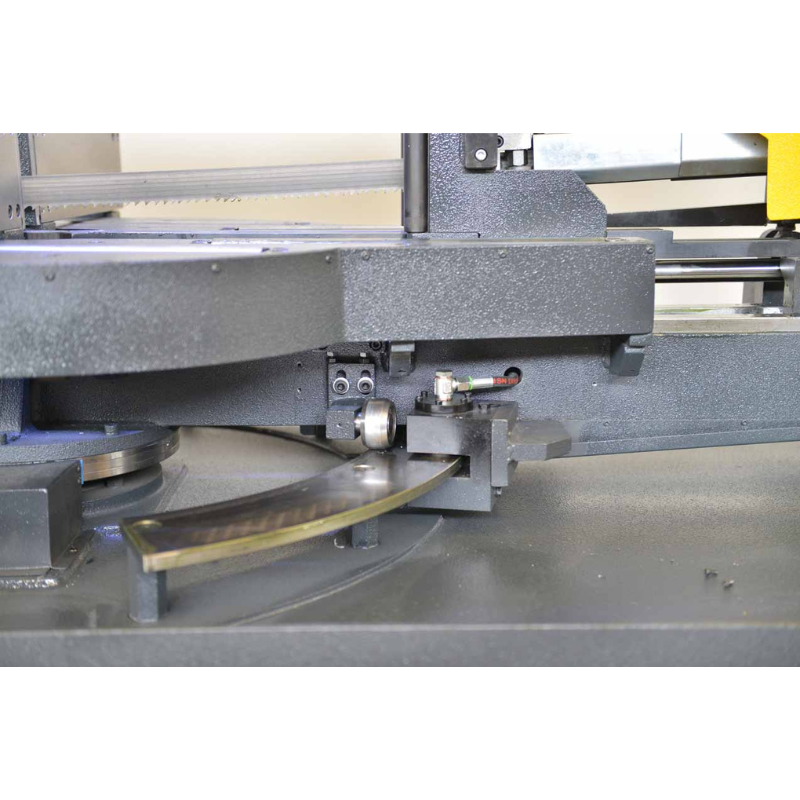

The double mitre turning table (-45°~+60°) yield a wide working range.
All SBS machines equip hydraulic clampings (Top/Side), copping with powerful main motor, for a fast and stable cutting.
Features:
-

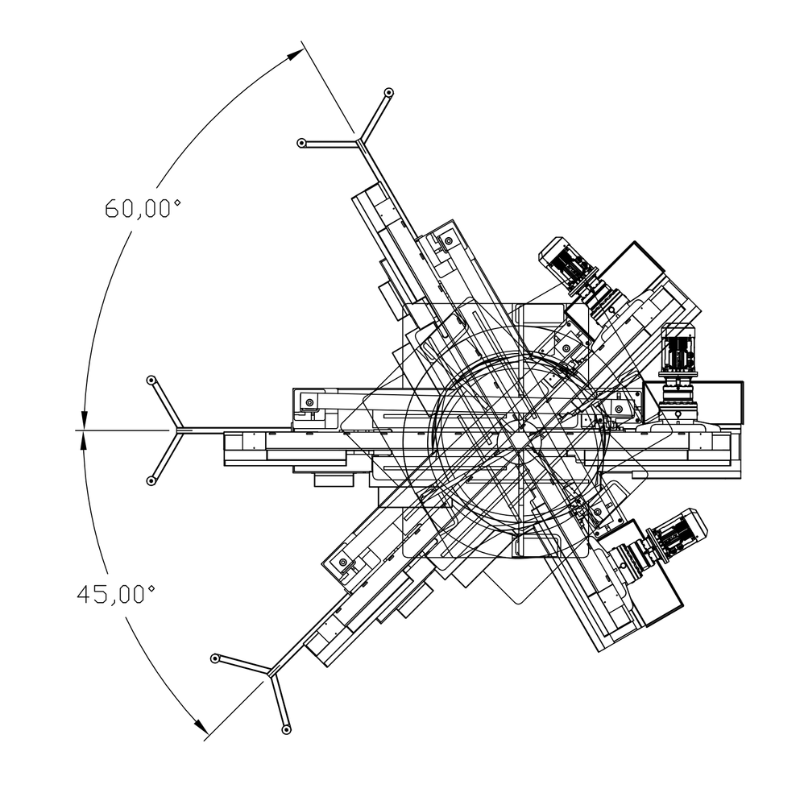

Double Mitre Wide Angel (-45°~+60°)
-

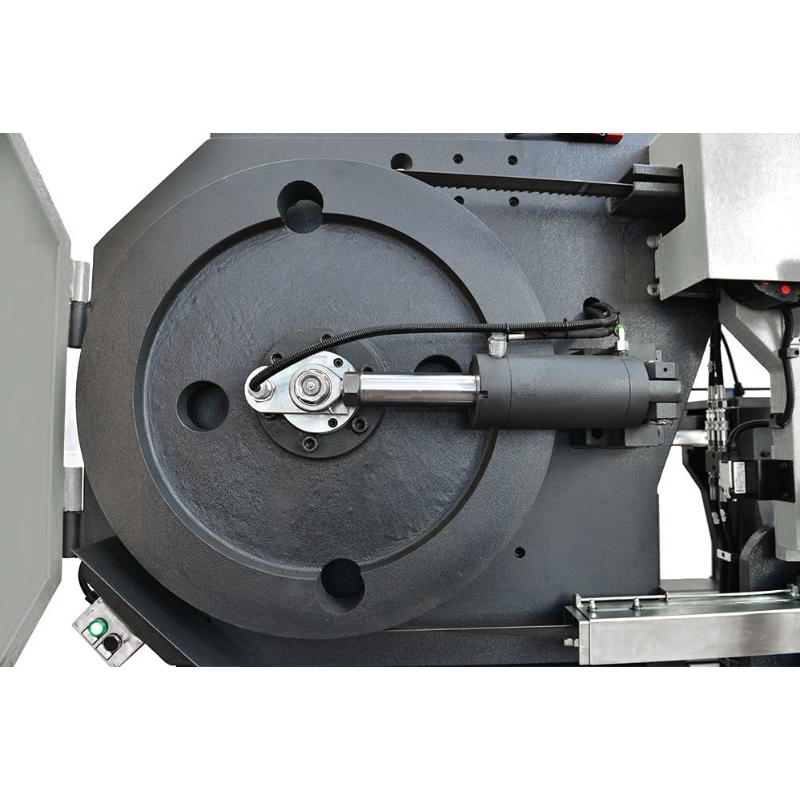

Tension Control
-

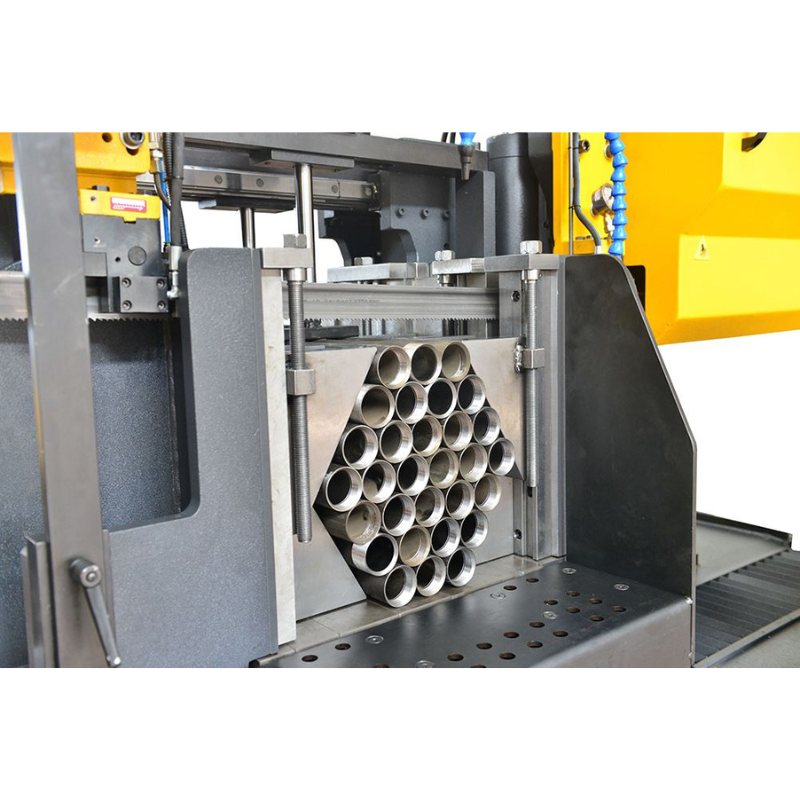

Hydraulic Clamping (Top/Side)
-
Auto Height Detection
|
|
unit |
SBS 440NC |
SBS 560NC |
SBS 650NC |
SBS 750NC |
|
Cutting Capacity |
|||||
|
BAR 0° |
mm |
440 |
560 |
650 |
750 |
|
RCT 0° |
mm |
640x440 |
820x540 |
1000x600 |
1300x750 |
|
RCT 30° |
mm |
510x440 |
670x540 |
840x600 |
1070x750 |
|
RCT 45° |
mm |
400x440 |
550x540 |
660x600 |
850x750 |
|
RCT 60° |
mm |
250x440 |
360x540 |
440x600 |
570x750 |
|
Specification |
|||||
|
Main Motor |
kW |
4 |
4 |
7.5 |
11 |
|
Hydraulic Motor |
kW |
1,1 |
1,1 |
4 |
4 |
|
Cutting Speed |
m/min |
20-100 |
20-100 |
20-100 |
20-100 |
|
Band Spec |
mm |
5200x41x1.1 |
6800x41x1.3 |
8400x54x1.6 |
9600x54x1.6 |
|
Length |
mm |
3100 |
3800 |
4400 |
5500 |
|
Width |
mm |
1200 |
1750 |
2270 |
2280 |
|
Height |
mm |
1910 |
2350 |
2660 |
3400 |
|
Weight |
kg |
1780 |
3200 |
6250 |
8500 |
|
Accessories |
|
|
|
|
|
|
NC Turning Table |
● |
● |
● |
● |
|
|
Hyd. Clamp (Side) |
● |
● |
● |
● |
|
|
Hyd. Clamp (Top) |
● |
● |
● |
● |
|
|
Height Detector |
● |
● |
● |
● |
|
|
Laser Pointer |
● |
● |
● |
● |
|
|
Blade Brush |
● |
● |
● |
● |
|
|
Hyd. Tension Ctrl. |
▲ |
▲ |
● |
● |
|
|
Chip Conveyor |
X |
▲ |
● |
● |
|
|
MQL |
▲ |
▲ |
▲ |
▲ |
|
* ●: Standard ▲: Option X: Not Available
** All specificaitons are subjected to change without further notice. Please contact us for the latest information.
